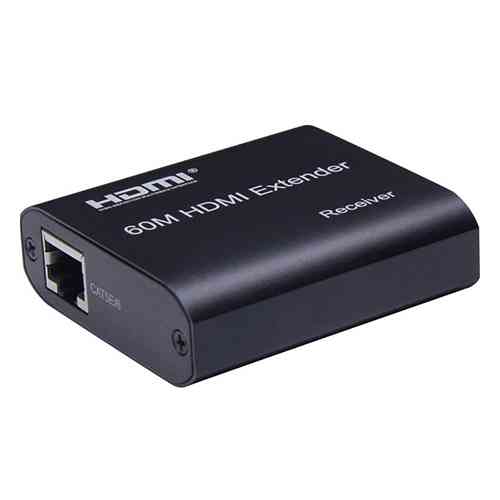

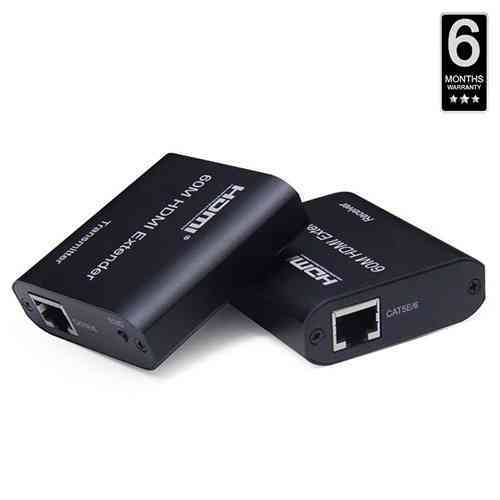

60M HDMI Extender RJ45 Over Single Cat 5E/6/7 Support 1080P

Buy 60M HDMI Extender in Sri Lanka HDMI Extender RJ45 Over Single Cat 5E/6/7 Support 1080P Best Price in Sri Lanka. HDMI Extender RJ45 3D HDMI Extender Transmitter Receiver Over Cat5e/Cat6 Cable for DVD/PC/Set-Smart Box/PS3/PS4/ Computer and TV. Islandwide Delivery and Store Pickup Available.

Introduction:

The Extender uses single cat5e or cat6(recommended) cables instead of HDMIcable to transmit high definition signal up to 60 meters,cutting down the cost. The Extenderis designed to supply long-distance transmission of high-definition signals.

Features:

1:Support highest video resolution 1080p/60Hz;
2:60M long-distance transmission:
3:Low power consumption,low temperature,and high safety

Specifications:

• Length of CAT-6/CAT-5E cable between Rx and TX ………………………Up to 60 meters
• HDMI Input …………………………………….. 1080p/1080i/720p/576p/576i/480p/480i
• HDMI Output …………………………………….1080p/1080i/720p/576p/576i/480p/480i
• Max bandwidth……………………………………………………………………………150MHz
• Max baud rate ………………………………………………………………………….. 4.5Gbps
• Input video signal ……………………………………………………………0.5~1.5Volts p-p
• Output DDC signal ……………………………………………………………5Volts p-p (TTL)
• Input HDMI cable distance …………………………. ≤10m AWG26 HDMI standard cable
• Output HDMI cable distance …………………………≤15m AWG26 HDMI standard cable
• TX Max working current………………………………………………………………….300mA
• RX Max working current………………………………………………………………….300mA
• Power adapter format…………..Input:AC (50HZ,60HZ) 100V-240V;Output:DC5V/1A
• Operating Temperature range………………………………………………….(-15 to +45℃)
• Operating Humidity range …………………………………5 to 90%RH (No Condensation)
• Dimension (L x W x H) ………………………………………………………64x59x22 (mm)
• TX Weight……………………………………………………………………………………….53g
• RX Weight ………………………………………………………………………………………53g

Connection and Operation:

Connect one HDMI cable between the source device and TX Extender,the max cable distance is 10 meters;

• Connect one HDMI cable between the display device and RX Extender,the max cable distance is 15 meters;
• Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender,the max cable distance is 60 meters;
•  Connect 5V power supply to the TX and RX;
• LED indicator light:
  TX LED indicator light:When there is signal input,it turns blue;
  RX LED indicator light:When there is signal input,it turns blue;
• EDID button:The button can support the switch of EDID between 720P and 1080P.
  (1080P is the default EDID when the power is on).

Package Included:

1. TX Extender x 1pc
2. RX Extender x 1pc
3. Micro USB cable x 2pcs
4. User Manual x 1pc
