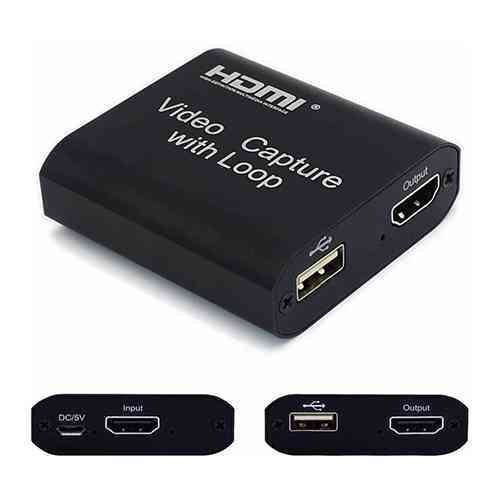

Video Capture Card with Loop Out HDMI To HDMI USB 2.0

Buy 4k Audio Video Capture Card with Loop out Sri Lanka Best Price at Dealhub.lk. Video HDMI Capture Card with Loop Out HDMI To HDMI USB 2.0 for Phone PS4 Game Live Video Streaming Record.

4K USB HDMI Video Capture Card With Loop Out for Streaming Meeting Game Recorder,Live Streaming Broadcasting Video Recording for Gaming,Streaming,Teaching,Video Conference,Live Broadcasting

This video capture card can capture both HDMI video and HDMI audio,sending audio and video signals to computers and smartphones for preview and storage.

Plug and play,no need to install other driver software,suitable for high definition acquisition,teaching recording,medical imaging,etc.

How to connect?

>Micro USB power cable connects to Micro USB port to supply power
>Input port:input the streaming video through the HDMI “Input”port.
>Output port:connect the monitor through the HDMI “Output”port to preview the streaming video in real-time.
>Connect it to the computer through the USB 2.0 port,use “VLC / OBS / Amcap,etc”to edit the video at the same time.

Specifications:

Support HDMI loop out
Support input HDMI max 4K@60Hz,max output HDMI &USB 1080P@30Hz
Support most acquisition software,such as VLC,OBS,Amcap,etc;
Support Windows,Android,and macOS
Conform to USB Video and UVC standard
Conform to USB Audio UAC standard
Support video format 8/10/12bit Deep color
Video output format YUV,JPEG
Support audio format L-PCM
Max working current 0.7A/5V DC
Operating Temperature Range (-10 to +55℃)
Dimension (L x W x H) 59x56x19 (mm)

Package included:
1 x HDMI HD Video Capture Card With Loop out
1 x USB Male to Male Cable
1 x Mirco USB Cable
1 x User Manual
